Specification

Boundary dimensions(mm)

Mass(kg)

Specification

Boundary dimensions(mm)
Mass(kg)

Cylindrical Bore

Tapered Bore
d
D
B

Cylindrical Bore

Tapered Bore
d
D
B
22205
22205K
25
52
18
0.160
22334
22334K
170
360
120
57.900
22206
22206K
30
62
20
0.260
22336
22336K
180
380
126
67.500
22207
22207K
35
72
23
0.390
22338
22338K
190
400
132
78.100
22208
22208K
40
80
23
0.480
23022
23022K
110
170
45
3.750
22209
22209K
45
85
23
0.530
23024
23024K
120
180
46
4.110
22210
22210K
50
90
23
0.570
23026
23026K
130
200
52
5.990
22211
22211K
55
100
25
0.760
23028
23028K
140
210
53
6.520
22212
22212K
60
110
28
1.040
23030
23030K
150
225
56
7.900
22213
22213K
65
120
31
1.430
23032
23032K
160
240
60
9.660
22214
22214K
70
125
31
1.510
23034
23034K
170
260
67
13.000
22215
22215K
75
130
31
1.590
23036
23036K
180
280
74
17.100
22216
22216K
80
140
33
1.930
23038
23038K
190
290
75
17.600
22217
22217K
85
150
36
2.410
23040
23040K
200
310
82
22.400
22218
22218K
90
160
40
3.110
23122
23122K
110
180
56
5.700
22219
22219K
95
170
43
3.820
23124
23124K
120
200
62
7.840
22220
22220K
100
180
46
4.620
23126
23126K
130
210
64
8.680
22222
22222K
110
200
53
6.780
23128
23128K
140
225
68
10.500
22224
22224K
120
215
58
8.450
23130
23130K
150
250
80
15.800
22226
22226K
130
230
64
10.500
23132
23132K
160
270
86
20.300
22228
22228K
140
250
68
14.500
23134
23134K
170
280
88
21.800
22230
22230K
150
270
73
18.400
23136
23136K
180
300
96
27.500
22232
22232K
160
290
80
23.200
23138
23138K
190
320
104
34.500
22234
22234K
170
310
86
28.900
23140
23140K
200
340
112
42.600
22236
22236K
180
320
86
30.200
23218
23218K
90
160
52.40
4.520
22238
22238K
190
340
92
35.500
23220
23220K
100
180
60.30
6.600
22240
22240K
200
360
98
42.700
23222
23222K
110
200
69.80
9.540
22308
22308K
40
90
33
0.960
23224
23224K
120
215
76
12.100
22309
22309K
45
100
36
1.280
23226
23226K
130
230
80
14.300
22310
22310K
50
110
40
1.670
23228
23228K
140
250
88
18.800
22311
22311K
55
120
43
2.190
23230
23230K
150
270
96
24.200
22312
22312K
60
130
46
2.720
23232
23232K
160
290
104
30.500
22313
22313K
65
140
48
3.340
23234
23234K
170
310
110
36.400
22314
22314K
70
150
51
4.040
23236
23236K
180
320
112
38.900
22315
22315K
75
160
55
4.960
23238
23238K
190
340
120
47.600
22316
22316K
80
170
58
5.910
23240
23240K
200
360
128
57.100
22317
22317K
85
180
60
6.720
24024
24024K
120
180
60
5.330
22318
22318K
90
190
64
8.060
24026
24026K
130
200
69
7.840
22319
22319K
95
200
67
9.300
24028
24028K
140
210
69
8.370
22320
22320K
100
215
73
12.200
24030
24030K
150
225
75
10.500
22322
22322K
110
240
80
17.000
24032
24032K
160
240
80
12.700
22324
22324K
120
260
86
22.200
24034
24034K
170
260
90
17.00
22326
22326K
130
280
93
27.400
24036
24036K
180
280
100
22.700
22328
22328K
140
300
102
34.300
24038
24038K
190
290
100
23.900
22330
22330K
150
320
108
41.700
24040
24040K
200
310
109
30.400
22332
22332K
160
340
114
49.500








1).supply 22200,22300,23000,23100,23200,24000 series

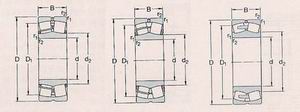

2).The structure:  20000CC , 20000E , 20000CA , 20000MB , 20000MA,.

3).Tapered Bore:  K: 1:12
                  K30: 1:30 (240 series, 241 series, 248 series, 249 series.)


obt bearing, Shandong Obetter Bearing Co., Ltd. spherical roller bearings, Self-aligning roller bearings.
