Agricultural Hub for seeding discs
OBT Bearing 2017-5-16
Pre-assembled units with high-performance seal help extend service life and sow greater profitability During.
Product detail :

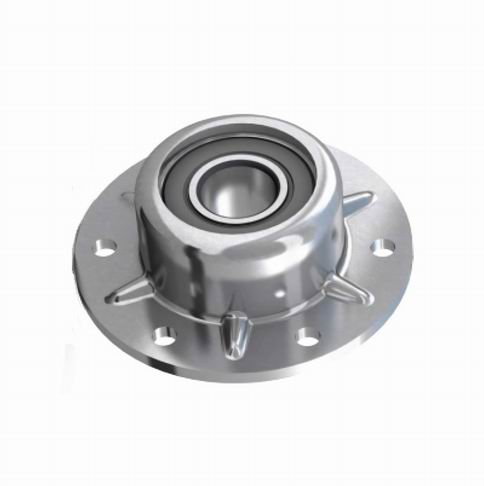

Deal for minimum tillage or direct seeding applications, the standard SKF Agri Hub for seeding discs is available as a fully assembled hub unit with a metal-sheet flange. Sealed-for-life and relubrication-free, the unit’s primary features include:
Double-row deep groove ball bearing, enabling a higher carrying capacity compared to conventional one-row designs
Eco-zinc coating, contributing to long service life and precision performance
Robust five-lip seal design that helps extend bearing service life, reducing maintenance and repairs
Design flexibility: the standard 16 mm and 20 mm hub units are available with or without flange to accomodate designrequirements.
| Designation |
Hub outer diameter |
Basic load ratings |
Bore |
Bearing |
5 Lip seal position |
| diameter |
unit |
| dynamic C |
static C0 |
d |
|
| BB2-3500 |
– |
20.8 |
13.2 |
– |
Bearing |
– |
| ADH-7545 |
6 x |
20.8 |
13.2 |
20 |
Flanged unit |
on flange side |
| ADH-7545 B |
6 x |
20.8 |
13.2 |
16 |
Flanged unit |
on flange side |
| ADH-7546 |
6 x |
20.8 |
13.2 |
20 |
Flanged unit |
on opposite flange side |
| ADH-7546 B |
6 x |
20.8 |
13.2 |
16 |
Flanged unit |
on opposite flange side |
BB2-3500 , ADH7545 , ADH7545B ADH7546 ADH7546B
