Single row tapered roller bearings inch series,
752/759
SET-508
759 /752
4T-759/752
|

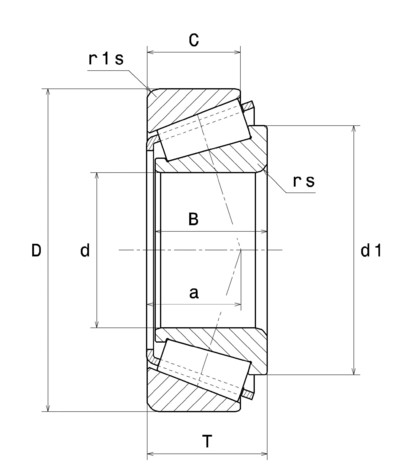

Technical data 4T-759/752 |
| Product definition |
| d |
88.9 mm |
| D |
161.92 mm |
| B |
48.26 mm |
| C |
38.1 mm |
| T |
47.62 mm |
| d1 |
120.5 mm |
| a |
35.62 mm |
| e |
0.34 |
| Y2 |
1.76 |
| Y0 |
0.97 |
| Mass |
4.09 kg |
| Brand |
NTN, NSK ,
|
Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
| Timken Specifications |
|
Series |
755 |
| Cone Part Number |
759 |
| Cup Part Number |
752-B |
| Design Units |
Imperial |
| Bearing Weight |
9.30 lb |
| 4.200 Kg |
| Cage Type |
Stamped Steel |
|
|
|
d - Bore |
3.5000 in |
| 88.900 mm |
| D - Cup Outer Diameter |
6.3750 in |
| 161.925 mm |
| D1 - Flange Outer Diameter |
6.6830 in |
| 169.748 mm |
| B - Cone Width |
1.9000 in |
| 48.260 mm |
| C - Cup Width |
1.5000 in |
| 38.100 mm |
| C1 - Cup Flange Width |
0.3120 in |
| 7.925 mm |
| T1 - Bearing Width |
1.8755 in |
| 47.638 mm |
| T - Bearing Width to Flange |
0.6875 in |
| 17.463 mm |
|
Abutment and Fillet Dimensions |
|
R - Cone Backface "To Clear" Radius1 |
0.14 in |
| 3.600 mm |
| r - Cup Backface "To Clear" Radius2 |
0.130 in |
| 3.30 mm |
| da - Cone Frontface Backing Diameter |
3.90 in |
| 99.10 mm |
| db - Cone Backface Backing Diameter |
4.17 in |
| 105.90 mm |
| Da - Cup Frontface Backing Diameter |
5.94 in |
| 150.11 mm |
| Ab - Cage-Cone Frontface Clearance |
0.07 in |
| 1.8 mm |
| Aa - Cage-Cone Backface Clearance |
0.11 in |
| 2.8 mm |
| a - Effective Center Location3 |
-0.47 in |
| -11.9 mm |
|
Basic Load Ratings |
|
C90 - Dynamic Radial Rating (90 million revolutions)4 |
19100 lbf |
| 84800 N |
| C1 - Dynamic Radial Rating (1 million revolutions)5 |
73600 lbf |
| 327000 N |
| C0 - Static Radial Rating |
99200 lbf |
| 441000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 |
11100 lbf |
| 49500 N |
|
|
|
K - Factor7 |
1.71 |
| e - ISO Factor8 |
0.34 |
| Y - ISO Factor9 |
1.76 |
| G1 - Heat Generation Factor (Roller-Raceway)10 |
177 |
| G2 - Heat Generation Factor (Rib-Roller End) |
29.4 |
| Cg - Geometry Factor11 |
0.0945
|
